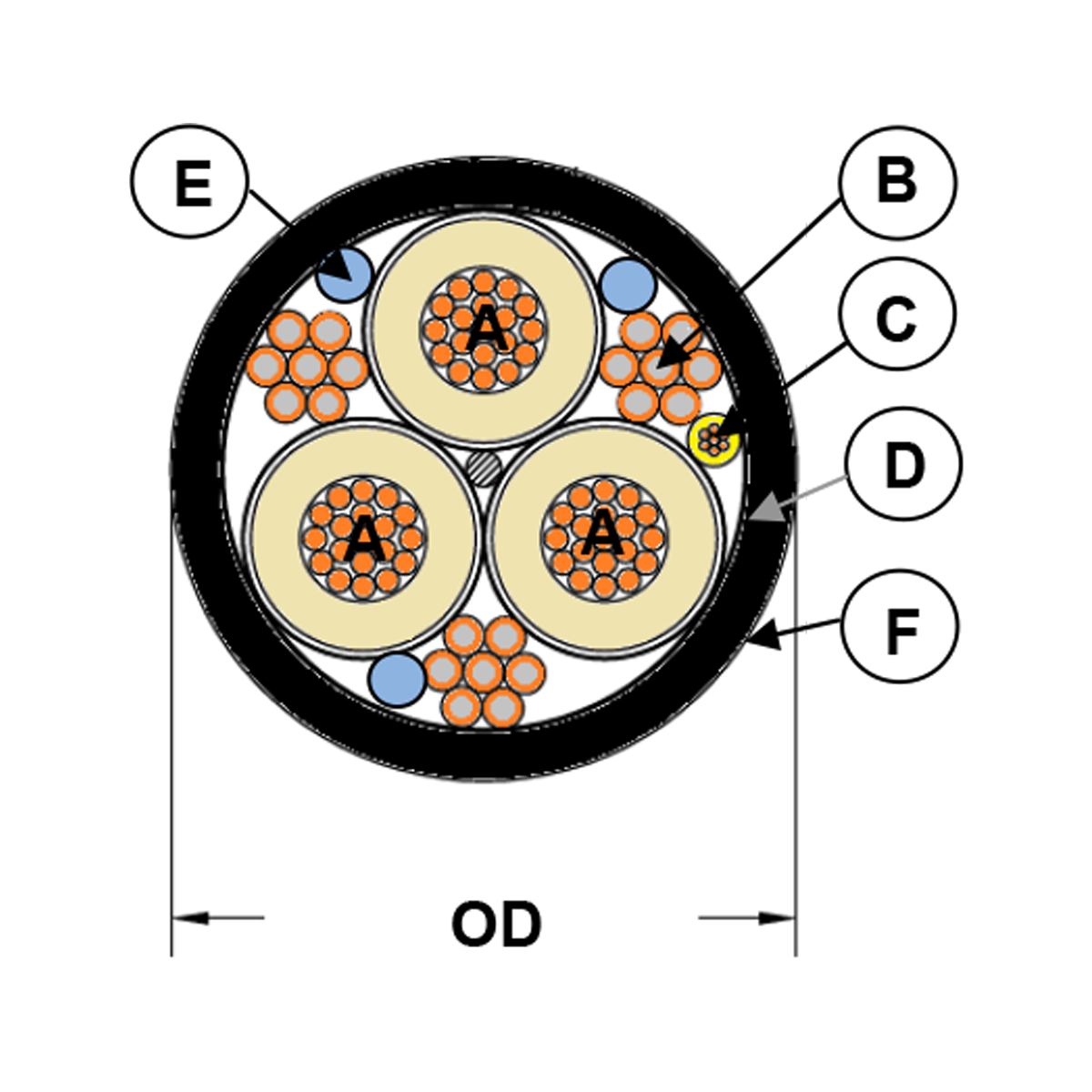

BOSTMINE MP-GC 5kV + Fibra óptica: 3 x 350MCM (37) Class B Compact Bare Copper Conductor, Semi-Conducting Extruded (inner) layer:

A: EPR Insulation, Semi-Conducting Extruded (outer) layer, copper tape helically applied,

Color Coded acc. ICEA (black, white and red)

B: 3 x (7×5 AWG) Copperweld Ground Wires (Steel Wire covered with a layer of bare copper)

C: 1 – 8 AWG (7) Class B Compressed Tinned Copper Conductor with yellow PP insulation, Ground-Check.

D: Binder Tape

E: 3 x (12 x 62.5 / 125 Multi-mode Fiber Optics)

F: Thermoset Compound / Extra-Heavy Duty Polychloroprene (Neoprene) Thermoset Jacket.

Normas aplicables

ANSI/NEMA WC58 ICEA S-75-381 MSHA 30 CFR Part 7, Sub Part K P-7K-270090-MSHA

Características

Nominal Diameter (OD): 2.67 inches

Tolerance: -5%/+8%

Cable Weight: 7.553 lbs/ft

Ampacity: 435 Amps (1)

1 based on single isolated cable in air operated with open-circuited shield, on continuous duty at 90°C conductor temperature, 40°C Free Air Ambient.
